COB P1.8 Indoor Module
COB P1.8 Indoor Module
Product features:
. RGB fully flip chip.
. COB integrated package, can be moisture-proof, dustproof, scrubbing.
. High contrast, matte fog surface, no reflection.
. PWM driver IC is configured to support high refresh, and the screen is colorful and realistic.
. Low voltage drive, low power consumption.
. Uniform module size:320mm×160mm.
AED 155.00
Main Technical Specifications：
Parameter
Pixel Pitch 1.86mm
LED Type
Fully flip chip COB Brightness 600cd/m²
Module Size
320x160mm Panel Weight 0.5kg/panel
Pixel Density 288,906pixels/m² Pixels Per Panel 172x86pixels
Ingress Protection
Front: IP54 Environment Indoor
Calibration
Support brightness and chroma Brightness Control Manual/Automatic
Color Temperature
1,000K~9,500K Adjustable Horizontal Viewing Angle 160°
Vertical Viewing Angle 160° Contrast Ratio 10000:1
Input Power <Max> 280 W/m² Input Power <Typical> 125 W/m²
Input Voltage
AC90~132V/ AC186~264V Processing Depth 13bit
Refresh Rate
3840Hz Video Frame Rate 50&60Hz
Input Power Frequency
50~60Hz LED Life Time 100,000 Hours
Operating Temperature/Humidity Storage Temperature/Humidity -10℃–45℃ / 10%-50%RH-20℃–55℃ / 10%-60%RH Certification / Data interfaces HUB320

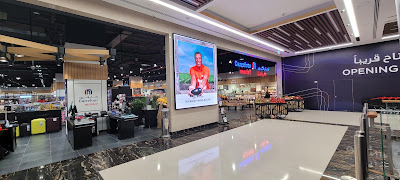

In Action
