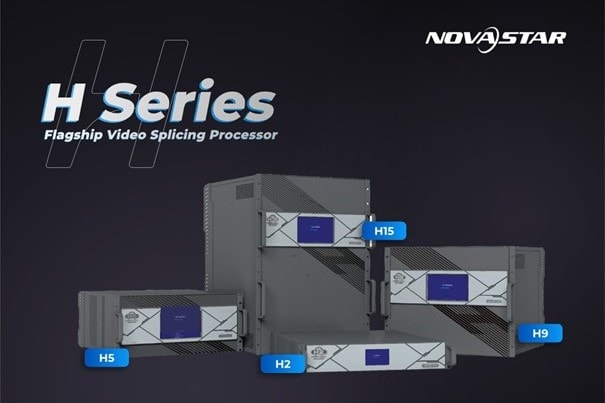

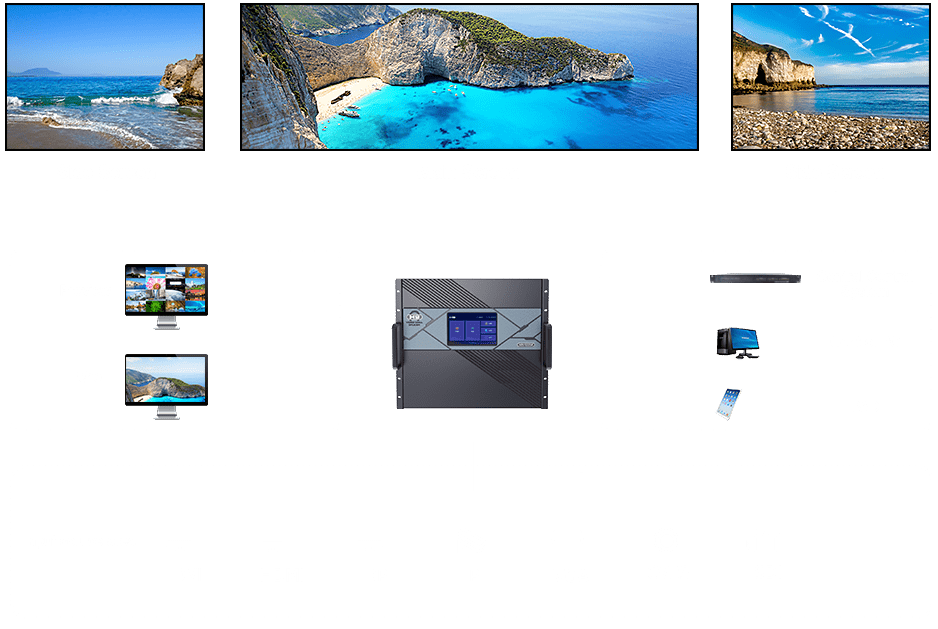

All-in-One Design
The H Series integrates splicing and display control in a compact unit, simplifying system interconnection. This reduces equipment failure rates and improves operational efficiency, making it an excellent choice for fine-pitch LED displays.

True 4K Resolution
Achieves 4K (4K×2K@60Hz, RGB 4:4:4, 10bit) signal processing and output. Supports DP1.2, HDMI2.0, and other 4K daughterboards for ultra-high-resolution displays.

Exceptional Image Quality
Features HDR, wide color gamut transmission, high contrast, and rich colors to enhance light and shadow details for superior visual performance.

Unmatched Stability

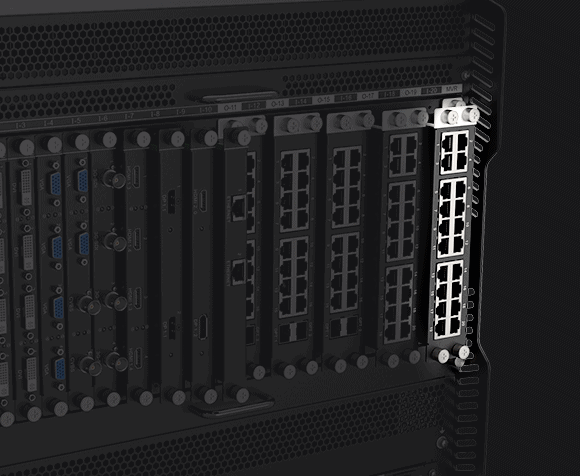

• Hot Plugs: Smart data recovery and hot-swappable input/output cards ensure stable operation.
• Dual Power: Industrial-grade redundant power modules provide uninterrupted functionality.

Hardware Features

• Two 4K Sending Cards available:
  • H_20xRJ45: Manages up to 13 million pixels.
  • H_16xRJ45: Manages up to 10.4 million pixels (incl. 2x OPT-Out).
• Supports various configurations:
  • 4x 2K×1K@60Hz
  • 2x 4K×1K@60Hz
  • 1x 4K×2K@60Hz
• Online monitoring for all input/output cards.
• “Hot-Swap” functionality for seamless maintenance.
• IP input card (H_2xRJ45) supports up to 100 IP cameras with input mosaic.
• Automatic HDCP decryption.
• Multi-screen management with web control.

Additional Features

• Supports 3D display.
• EDID and sequence management.
• Background (BKG) and OSD layers.
• Special-shaped splicing.
• Input monitoring and output display readback.
• Web and mobile control.

Specifications

• Weight: 17 kg
• Dimensions: 65 × 57 × 22 cm

Elevate your LED display experience with the NovaStar H Series, delivering professional-grade performance, reliability, and simplicity.
