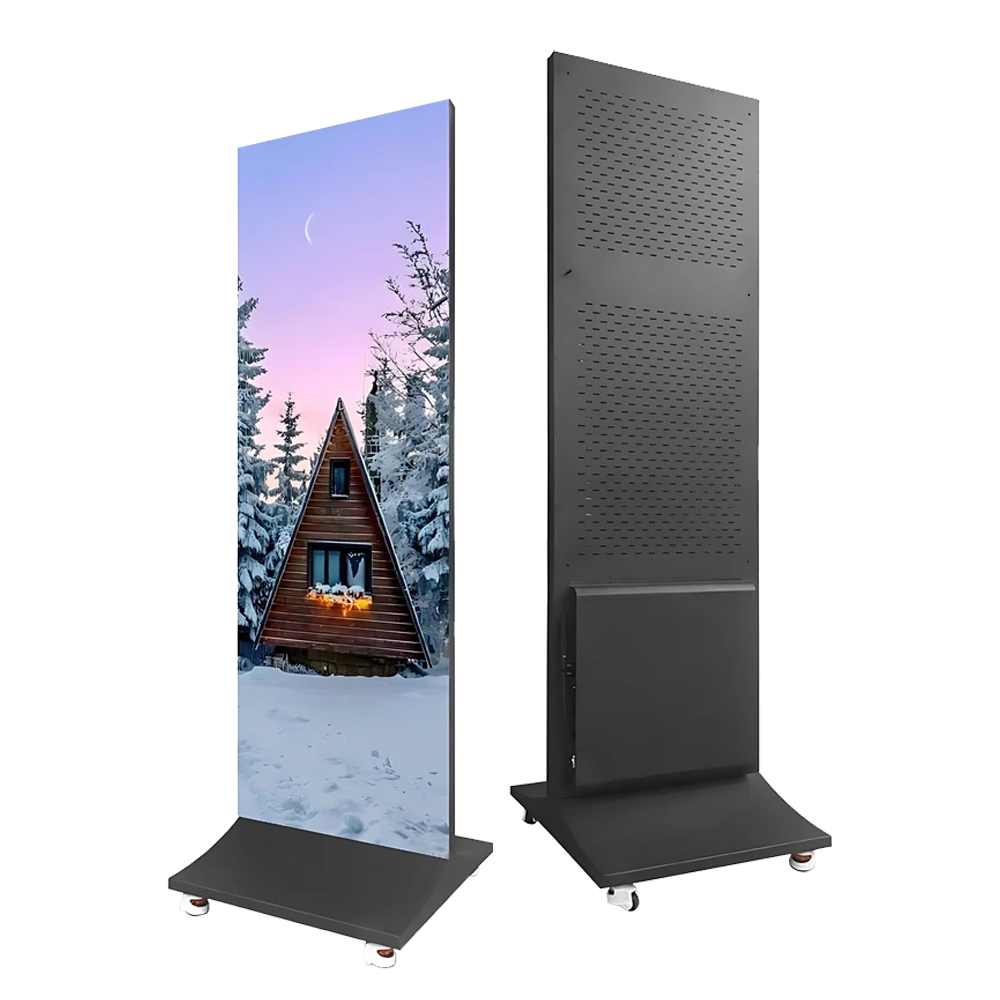

Indoor LED Poster SMD P2.5
Indoor LED Poster SMD P2.5
1.53GOB / 1.86GOB / 2.5mm
1) Frame-free installation;
2) 2-in-1 integrated circuit board design reduces internal wiring and
improves reliability;
3) Highly integrated all-in-one display device, plug and play；
4) Full front maintenance, hot-swappable, for fast maintenance;
5) Flexible movement of single floor display, seamless splicing of
multiple displays;
6) Connection by WiFi / Ethernet cable for rapid release of
information at PC end, intelligent and easy to operate;
7) Program release and display control via various user terminals
such as PC, mobile phone and Pad
8) The device does not produce sound and needs to be connected to a
speaker.
9) Sync and async dual mode.
AED 5,200.00
Product parameters
Machine parameters
Size 72 inches
Spacing 1.53GOB / 1.86GOB / 2.5mm
Resolution 240×675
Overall dimensions (W×H)
640×1910 mm (including base)
Display size (W×H)
640×1760mm
Screen thickness 33.5mm
Weight of the
whole screen
38kg (excluding base)
Recommended
sight distance
≥1.53m
Maintenance mode
Front maintenance
Optical parameters
Brightness 800cd/m2
Refresh rate 3840Hz
Gray scale 13bit
Contrast 6500:1
Color temperature 6500~9300K (adjustable)
Viewing angle 160° horizontal, 160° vertical
Electrical parameters
Operating voltage
100~240VAC 50/60Hz
Average power
consumption of
the machine
210W
≥1.86m ≥2.5m
Maximum power
consumption of
the machine
600W
System parameters
CPU 4-core A55 ARM processor running at 1.8GHzVideo decoding Support H.264, H.2654K @ 60Hz
RAM 1GB
Storage memory 16GB
Media format
Support MPEG1, MPEG2, MPEG4, WMV,
MKV, TS, FLV and other mainstream videoformats;
Support MP3 and other audio formats;
Support JPG, JPEG, BMP, PNG, GIF andother image formats
Environmental parameters
Operating temperature
-10℃—40℃
Storage temperature
-10℃~60℃
Operating humidity
10%~80% RH non-condensing
Storage humidity 10%~85% RH non-condensing
1. The content of this specification may be adjusted and revised in real time without
prior notice to provide as accurate specification parameters as possible
2. This product is an indoor product. It is strictly prohibited to use it in direct sunlight
3. In order to ensure long-term and more uniform display effect, do not play fixed images for a long time
4. Special Statement
– Intellectual Property Declaration: The hardware design and software
program of this product are protected by copyright. Reproduction of
this product and the contents of the manual without our
authorization will be subject to corresponding legal liability.
– The contents and pictures in this manual are for reference only and
do not constitute any kind of commitment.
– The company reserves the right to modify and change the
appearance design of the product without prior notice.
– Note: HDMI, HDMI High Definition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
In Action
