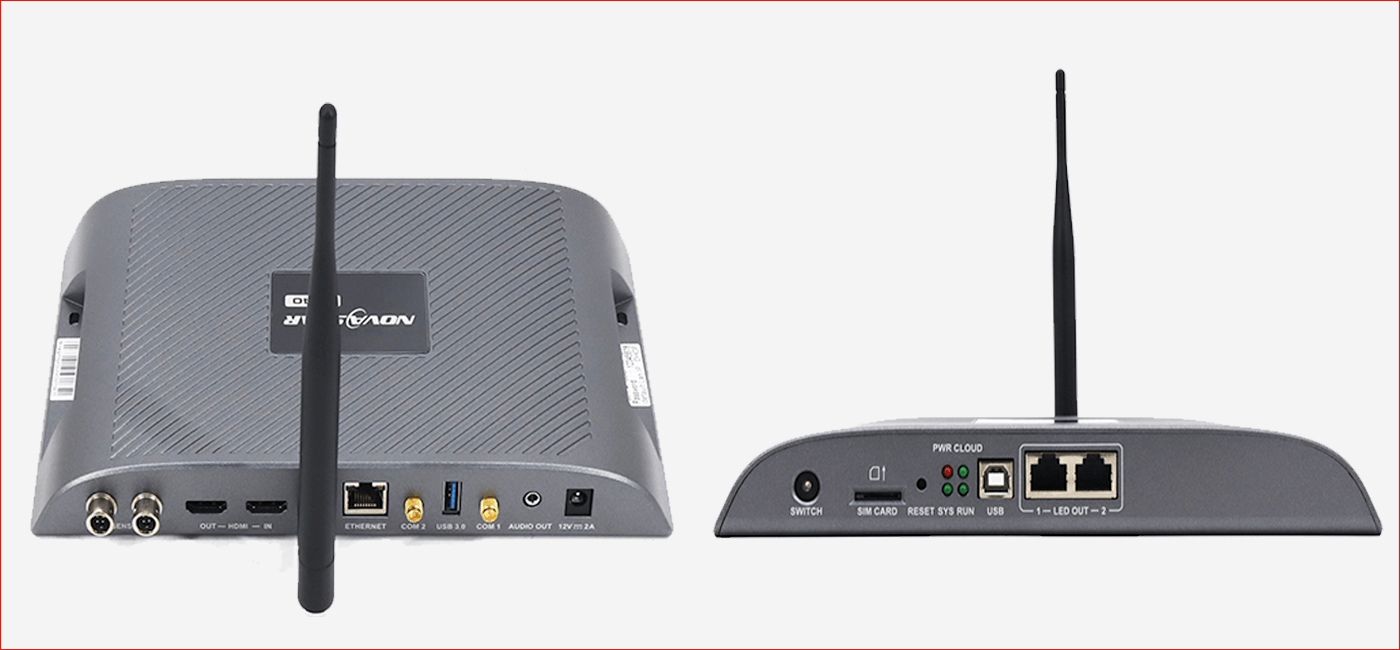

NovaStar™ TB40
NovaStar™ TB40

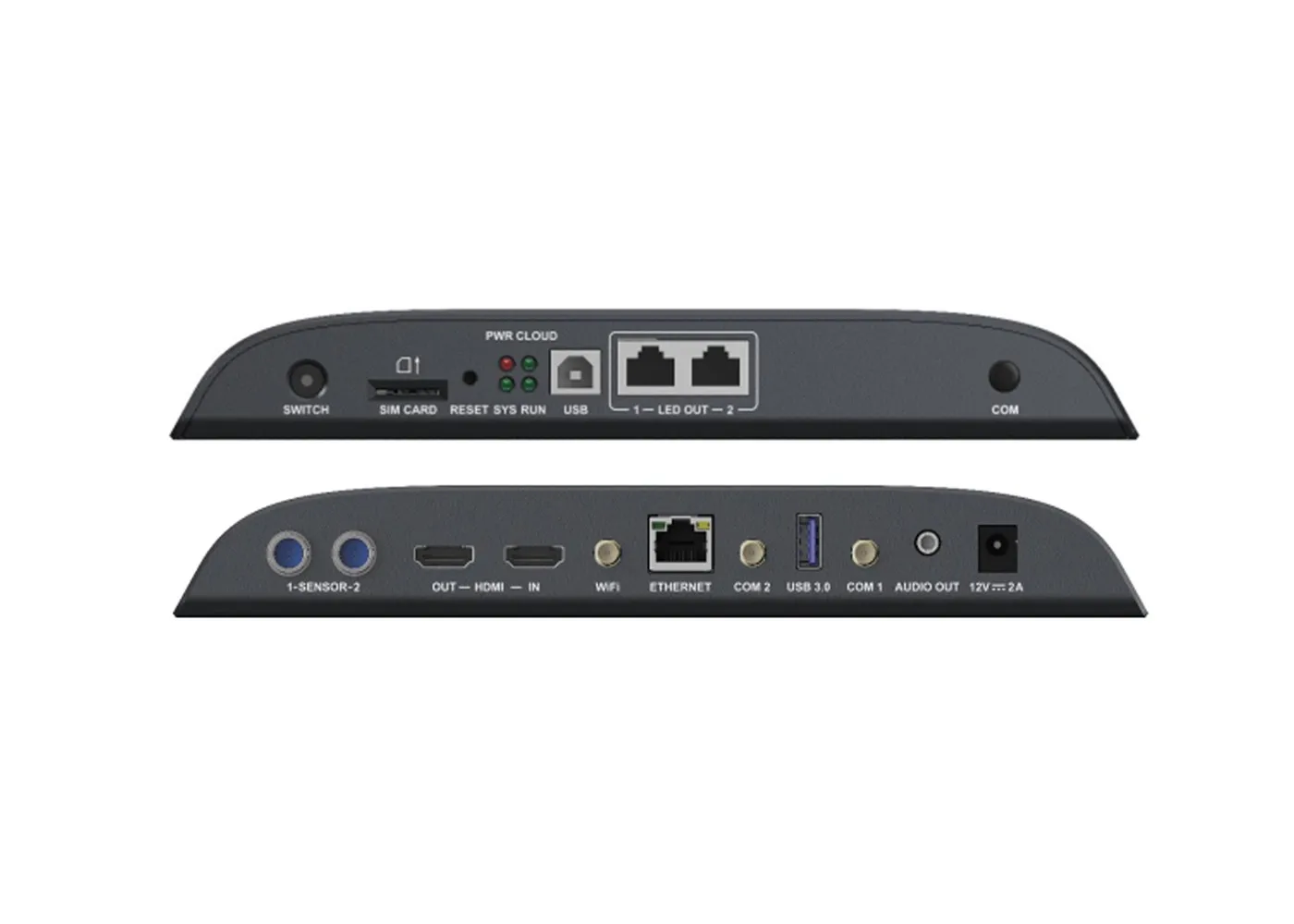

Output
- Loading capacity up to 1,300,000 pixels
Maximum width: 4096 pixels
Maximum height: 4096 pixels - 2x Gigabit Ethernet ports
All these four ports serve as primary by default.
Users can also set two as primary and the other
two as a backup. - 1x Stereo audio connector
The audio sample rate of the internal source is
fixed at 48 kHz. The audio sample rate of the
external source supports 32 kHz, 44.1 kHz, or
48 kHz. If NovaStar’s multifunction card is used
for audio output, audio with a sample rate of 48
kHz is required. - 1x HDMI 1.4 connector
Maximum output: 1080p@60Hz, support for
HDMI loop
Input
- 1x HDMI 1.4 connector
In synchronous mode, video sources input from this connector can be scaled to fit the entire screen automatically. - 2x sensor connectors
The audio sample rate of the internal source is
fixed at 48 kHz. The audio sample rate of the
Original price was: AED 1,600.00.AED 1,550.00Current price is: AED 1,550.00.
Features
Output
- Loading capacity up to 1,300,000 pixels
Maximum width: 4096 pixels
Maximum height: 4096 pixels - 2x Gigabit Ethernet ports
All these four ports serve as primary by default.
Users can also set two as primary and the other
two as a backup. - 1x Stereo audio connector
The audio sample rate of the internal source is
fixed at 48 kHz. The audio sample rate of the
external source supports 32 kHz, 44.1 kHz, or
48 kHz. If NovaStar’s multifunction card is used
for audio output, audio with a sample rate of 48
kHz is required. - 1x HDMI 1.4 connector
Maximum output: 1080p@60Hz, support for
HDMI loop
Input
- 1x HDMI 1.4 connector
In synchronous mode, video sources input from this connector can be scaled to fit the entire screen automatically. - 2x sensor connectors
The audio sample rate of the internal source is
fixed at 48 kHz. The audio sample rate of the
Control
- 1x USB 3.0 (Type A) port
Allows for USB playback and firmware upgrade
over USB. - 1x USB (Type B) port
Connects to the control computer for content
publishing and screen control. - 1x Gigabit Ethernet port
Connects to the control computer, a LAN or
public network for content publishing and screen
control.
Performance
- Powerful processing capacity
Quad-core ARM A55 processor @1.8 GHz
− Support for H.264/H.265 4K@60Hz video
decoding
− 1 GB of onboard RAM
− 16 GB of internal storage - Flawless playback
2x 4K, 6x 1080p, 10x 720p, or 20x 360p video
playback
Functionality
- All-round control plans
− Enables users to publish content and control screens from a computer, mobile phone, or tablet
− Allows users to publish content and control
screens from anywhere, anytime.
− Allows users to monitor screens from
anywhere, anytime.
- Switching between Wi-Fi AP and Wi-Fi STA
− In Wi-Fi AP mode, the user terminal connects to the built-in Wi-Fi hotspot of the TB40. The default SSID is “AP+Last 8 digits of SN” and the default password is “12345678”.
− In Wi-Fi STA mode, the user terminal and
the TB40 are connected to the Wi-Fi hotspot of a router.
- Synchronous and asynchronous modes
− In asynchronous mode, the internal video source works.
− In Wi-Fi STA mode, the user terminal and
the TB40 are connected to the Wi-Fi hotspot of a router. - In synchronous mode, the video source
input from the HDMI connector works.
- Synchronous playback across multiple screens
NTP time synchronization
− GPS time synchronization (The specified
4G module must be installed.)
− RF time synchronization (The specified RF
module must be installed.)
- Support for 4G modules
The TB40 ships without a 4G module. Users
have to purchase 4G modules separately if
needed.
Network connection priority: Wired network > WiFi network > 4G network
When multiple types of networks are available,
the TB40 will choose a signal automatically
according to the priority.
