Technical Specifications

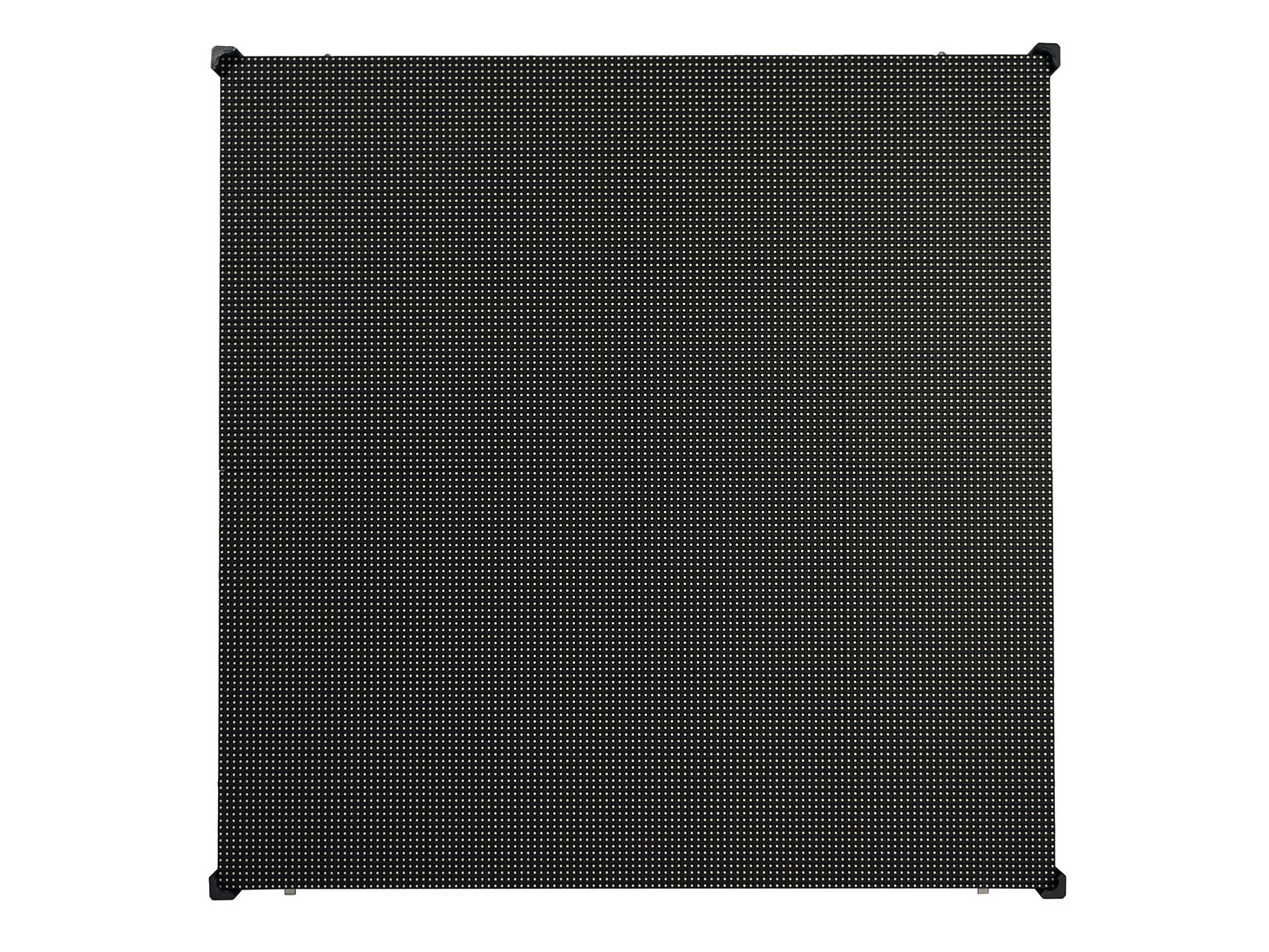

Indoor SMD-1515
Pixel Pitch:2.6
Receiving Card: A5S Plus Novastar
LED type: SMD 1515.
Module size: 250 x 250 mm.
Module resolution: 96 x 96.
Density (dots/m2): 147.456

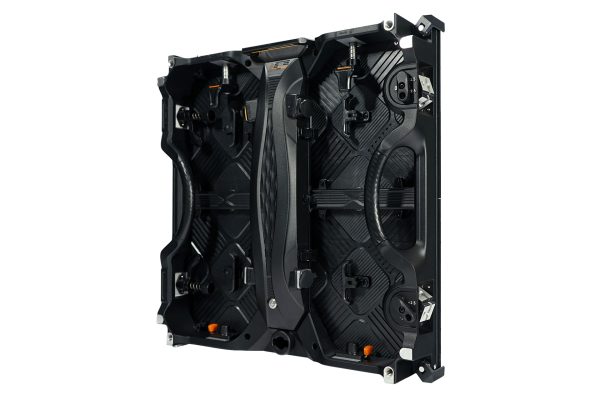

Cabinet size: 500 x 500 x 83.
Die casting cabinet material.
Weight: 8 KGs.
Supports removable modules and hanging.
Maximum power consumption: 450W/m2.
Average power consumption: 150 W.m2.
Grayscale: 16bit.
Color Temperature: 3000/10000 K.
Driving method: 1/32.
Refresh frequency: > 3000 Hz.
Brightness: 800cd/m or nits
Brightness control: 256 grade.
IP30

Modular Feature
Modular Feature – Three in one: The power supply and systems cards are integrated in one unit for quick replacement, and we also take a whole power supply box as a spare part unit for easy and fast maintenance.
Universal Module
Not needed to distinguish left/right modules or up and down module , our module is universal , can fit anywhere.
Curved Function
Curved Function – Icon Led Panels can installed at several curved angles , 5 angles available . -5°, -2.5°, 0°, +5°, +2.5°
Edge and bottom protection
Endge foltable protection and high heel design for protection edges and bottoms.
Fast lock for quick insatllation
Quick insatllation
Quick insatllation – lightweight panels and special handles for installation from one person.
Ultra black module design
Hybrid Hanging Beams
Same hanging beam can used for hanging and floor installation
Technical Specifications
Packing Details
All our led screens packed in flight cases and the ordered quantity needed to be multiple of eight.
