SMD P1.5 Indoor Flexible Module
SMD P1.5 Indoor Flexible Module
1.5 Flexible Display
Product features：
1 . Flexible soft module
. Flexible soft modules with customized
cabinet
. Modules can separately do shapes with
steel structure
2 . Larger flexibility
. 3D folding performance
. Six modules complete 1 circle radian (48cm
diameter)
3 . Combine with BNXⅡ to make corners and
curves
4 . Front maintenance
AED 5,700.00
Main Technical Specifications：
Parameter Value
Pixel Pitch 1.5mm
LED Type 3-in-1 SMD
Brightness 600cd/m²
Panel Size 500×500/1000mm
Module Size 250x125x9.8mm
Module Weight 0.18kg/pc
Pixel Density 409600pixels/m²
Pixels Per Panel 320X320/640 pixels
Maintenance Front
Ingress Protection Front IP40/Rear IP10
Curve Customized according to customers’ needs
Panel Area 0.25/0.5 ㎡
Planeness ≤0.6mm
Environment Indoor
Material Aluminum
Calibration Support brightness and chroma
Color Temperature 2,000K~9,300K Adjustable
Horizontal Viewing Angle 155°
Vertical Viewing Angle 155°
Contrast Ratio 5000:1
Input Power <Max> 500±10%W/m²
Input Power <Typical> 160±10%W/m²
Input Voltage 100~240VAC
Processing Depth 14bit
Refresh Rate 3840Hz
Video Frame Rate 50&60Hz
Input Power Frequency 50~60Hz
LED Life Time 100,000 Hours
Operating Temperature/Humidity -10℃~+45℃/10~70%RH
Storage Temperature/Humidity -20℃~+55℃/10~80%RH
Standard Mounting Configuration Fixed

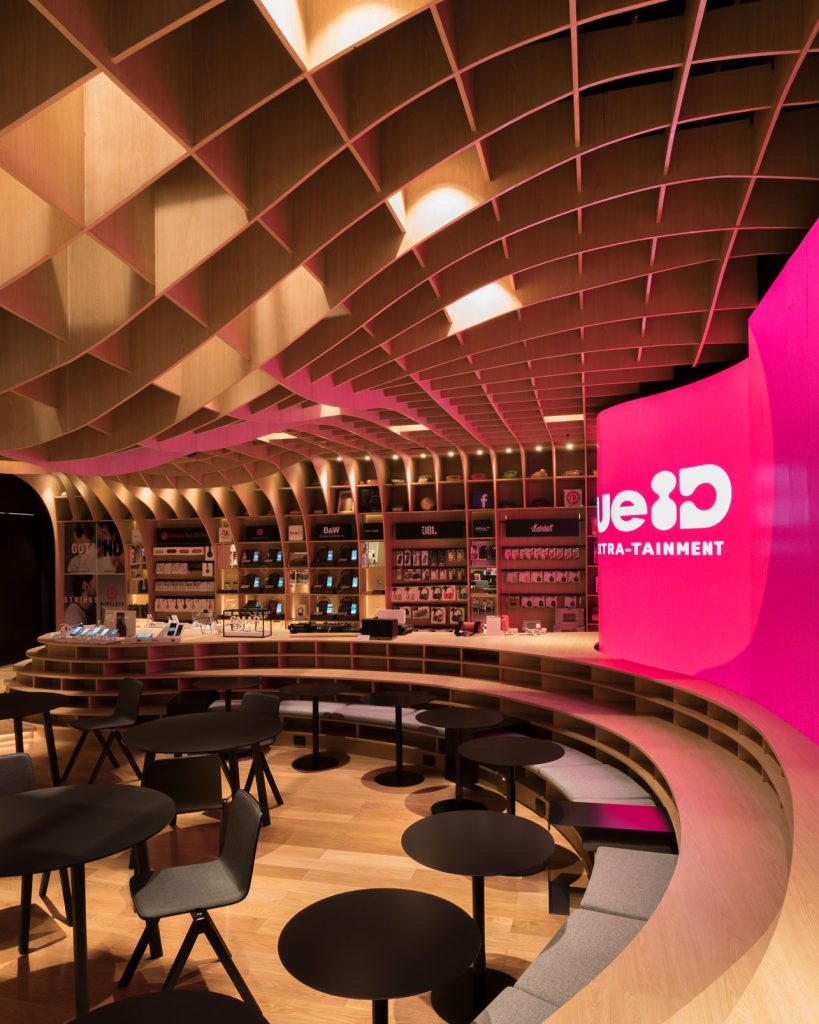

In Action
