SMD P2.5 Indoor Cabinet
SMD P2.5 Indoor Cabinet
Indoor Commercial Display
Product features：

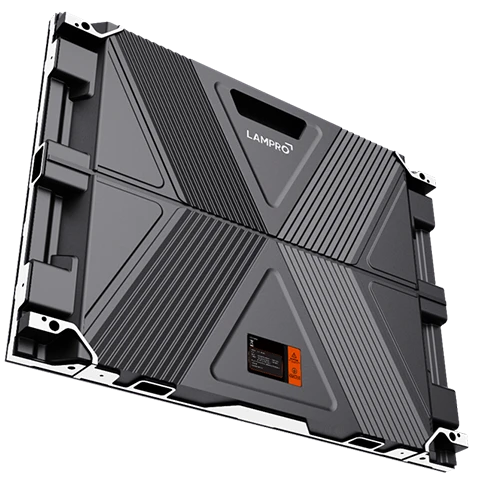

• Self-developed cabinet：
Unique exterior design, there are anti-dorking hole
positions on the left and right, and the bottom has a
bump-proof raised design.
Priority for Indoor Commercial Display
• High precision
Cabinet CNC machining size tolerance ± 0.05mm can be
seamless splicing, flatness ≤ 0.2mm.
• High Brightness ,High Contrast，High Refresh
Standard brightness ≥ 600nit, refresh rate up to 5000:1 ,
Standard 3840Hz.
• Good Compatibility
Replace the indoor P1.2~P4 module with the same series.

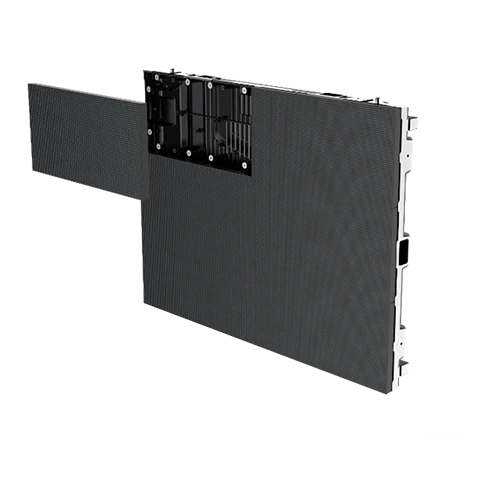

• Efficient Installation,Front Maintenance
• Support 45° cut angle, 90° splicing programmatic *

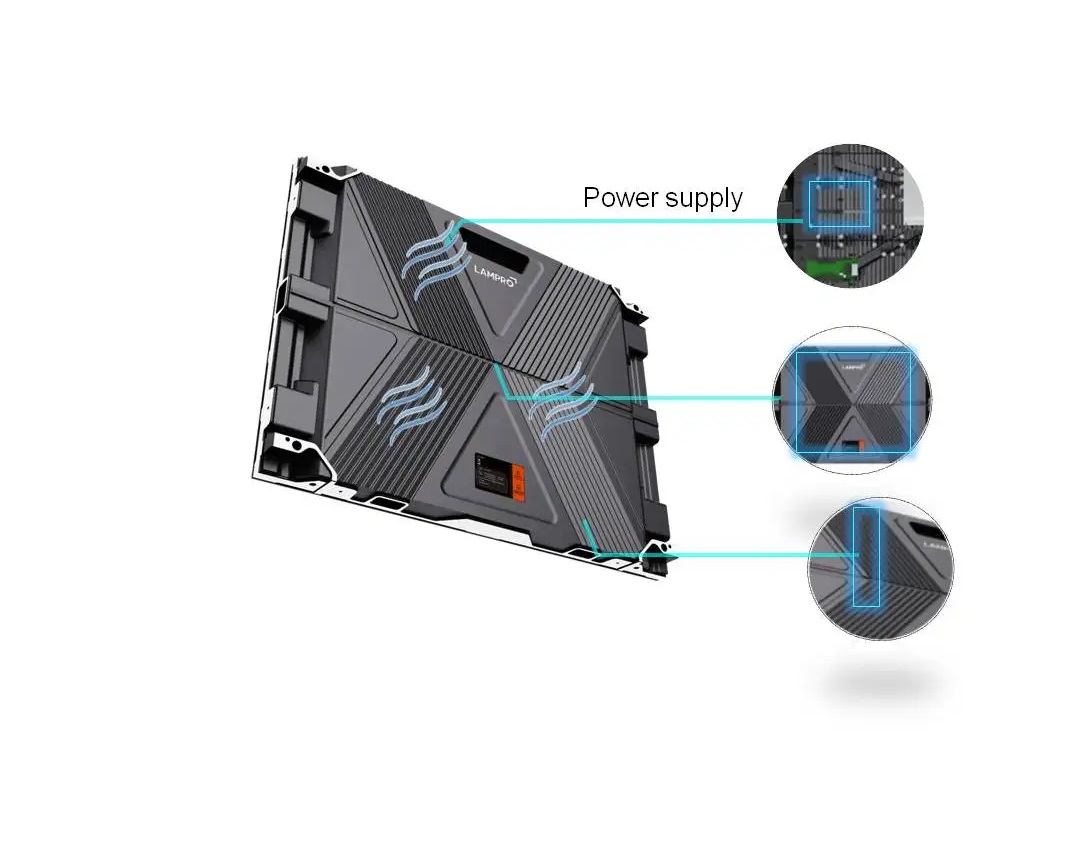

• Supports dual backup of power and signal*
• Support XYZ six adjustments*
• Support cut half cabinet program (320*480mm)*
AED 2,900.00
SPECIFICATION PARAMETERS：
Parameter Value
Module
Pixel Pitch 2.5mm
LED Type SMD2121
Module Resolution（W×H） 128X64=8192 Pixels
Pixel density（pixels/sq.m.） 160000 dot/㎡
Module Size (WxH) W320mmxH160mm

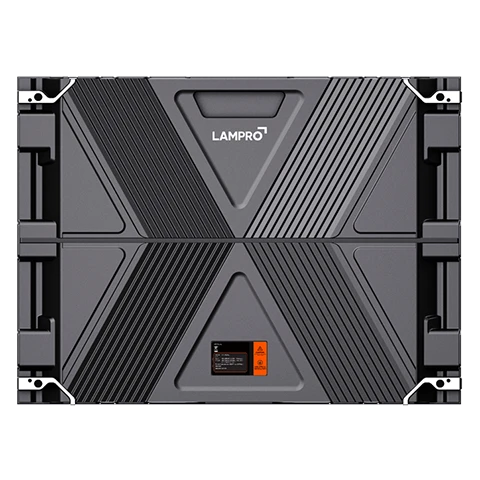

Cabinet
Cabinet Size (WxHxD) 640mmx480mmx60mm（With Back Cover）
Cabinet Weight (kg/panel) 7.8 kg
Maintenance Full front maintenance
Ingress Protection IP30
Planeness ≤0.5mm
Cabinet Material Die-casting Aluminum
Optical
Single-dot Brightness Calibration Support
Brightness 600 cd/㎡
Color Temperature 2000K～9300K Adjustable
Beam Angle（Hor/Ver°） 140°/140°
Brightness/Color Uniformity ≥98%
Contrast Ratio 5000:1
Electronic
Input Power <Max> 488 W/㎡
Input Power <Typical> 146 W/㎡
Power Supply Input Voltage AC200-240V，Frequency 47-63(Hz)
Performance
Frame Changing Frequency 60Hz
Refresh Rate 3840Hz
Processing Depth 12~14Bit
Video Support 2K、4K
Environment
Life Span（hrs） 100000hrs
Working Temp/Humidity（℃/RH） -20℃~45℃ / 10%~60%RH (No Condensation)
Storage Temp/Humidity（℃/RH） -20℃~50℃ / 10%~65%RH (No Condensation)
Certification CE/CB/ROHS/EAC/CCC/BS476-7

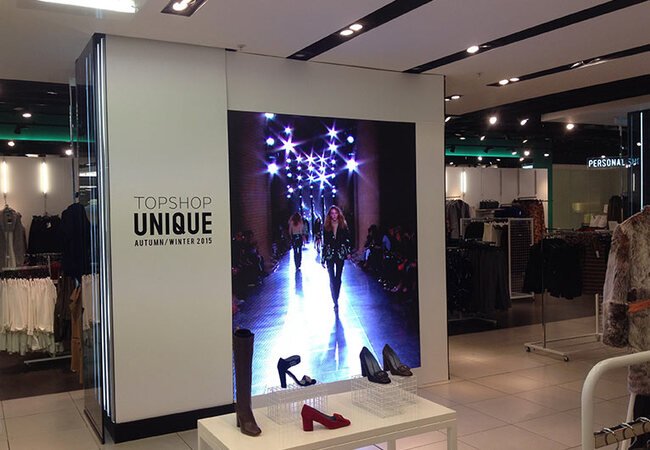

In Action
