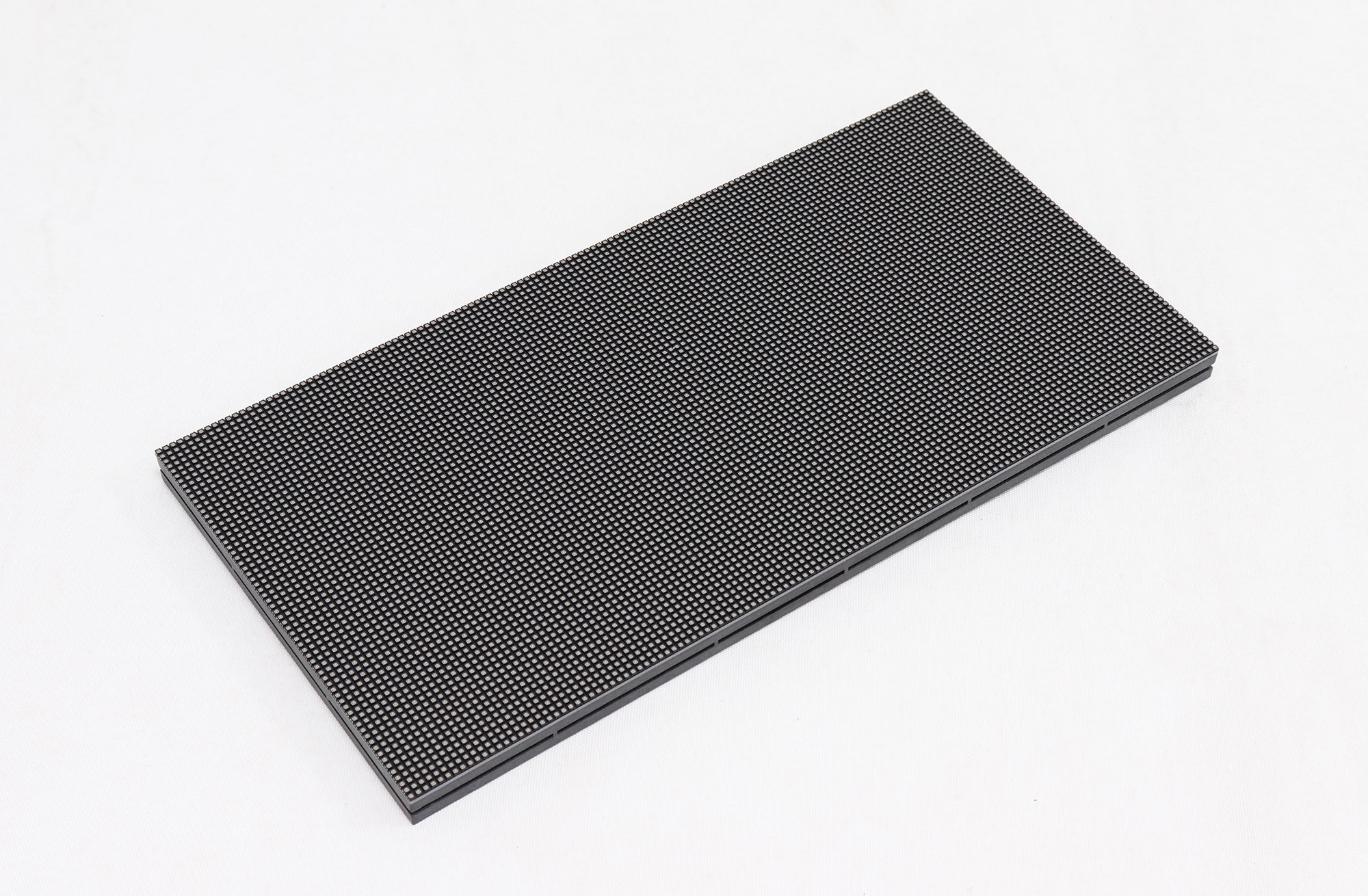

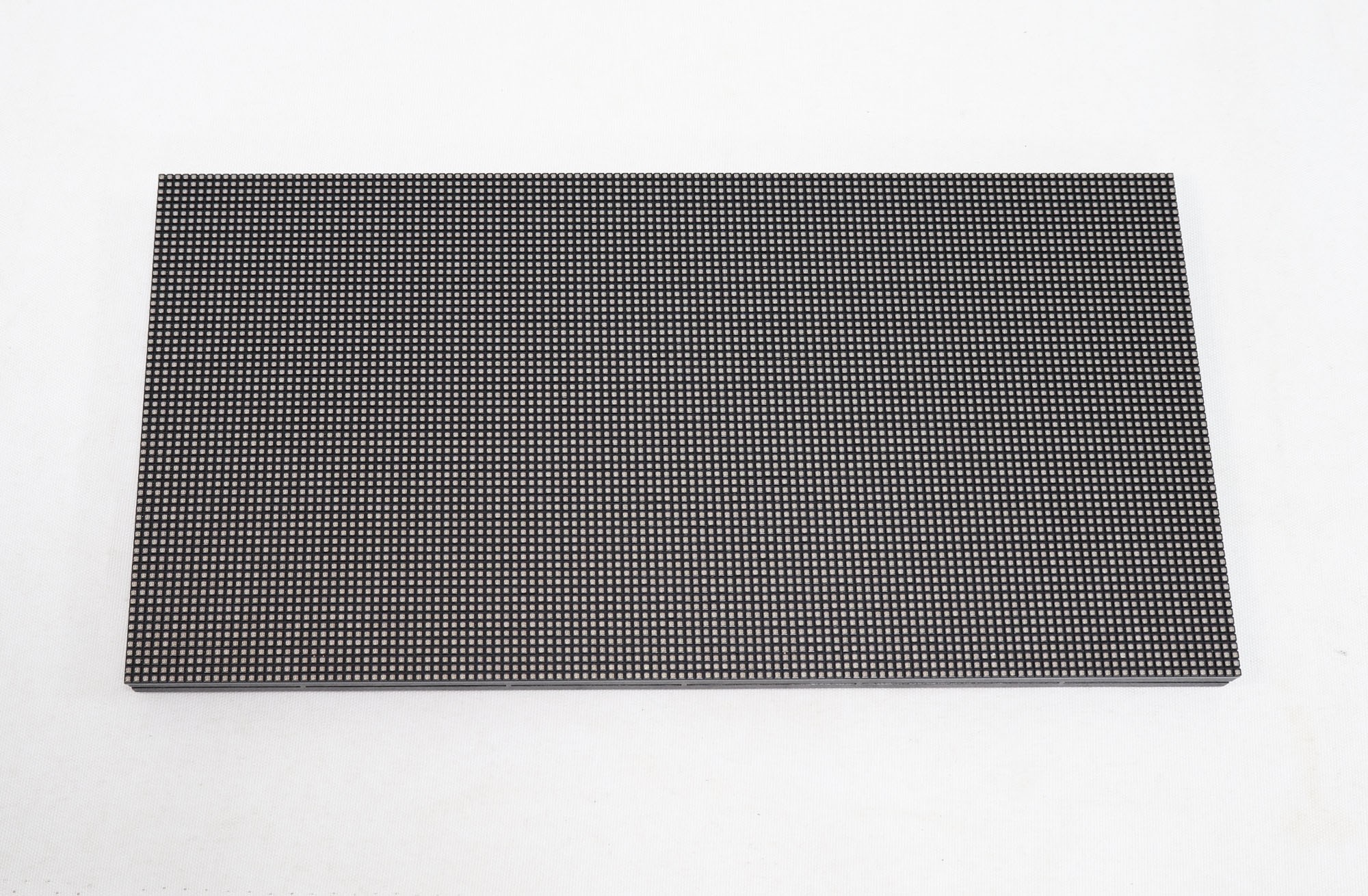

SMD P2.5 Indoor Module
SMD P2.5 Indoor Module
P2.5 Indoor Module
LED Display Light Everywhere
Product features：
• 320X160mm universal sizen

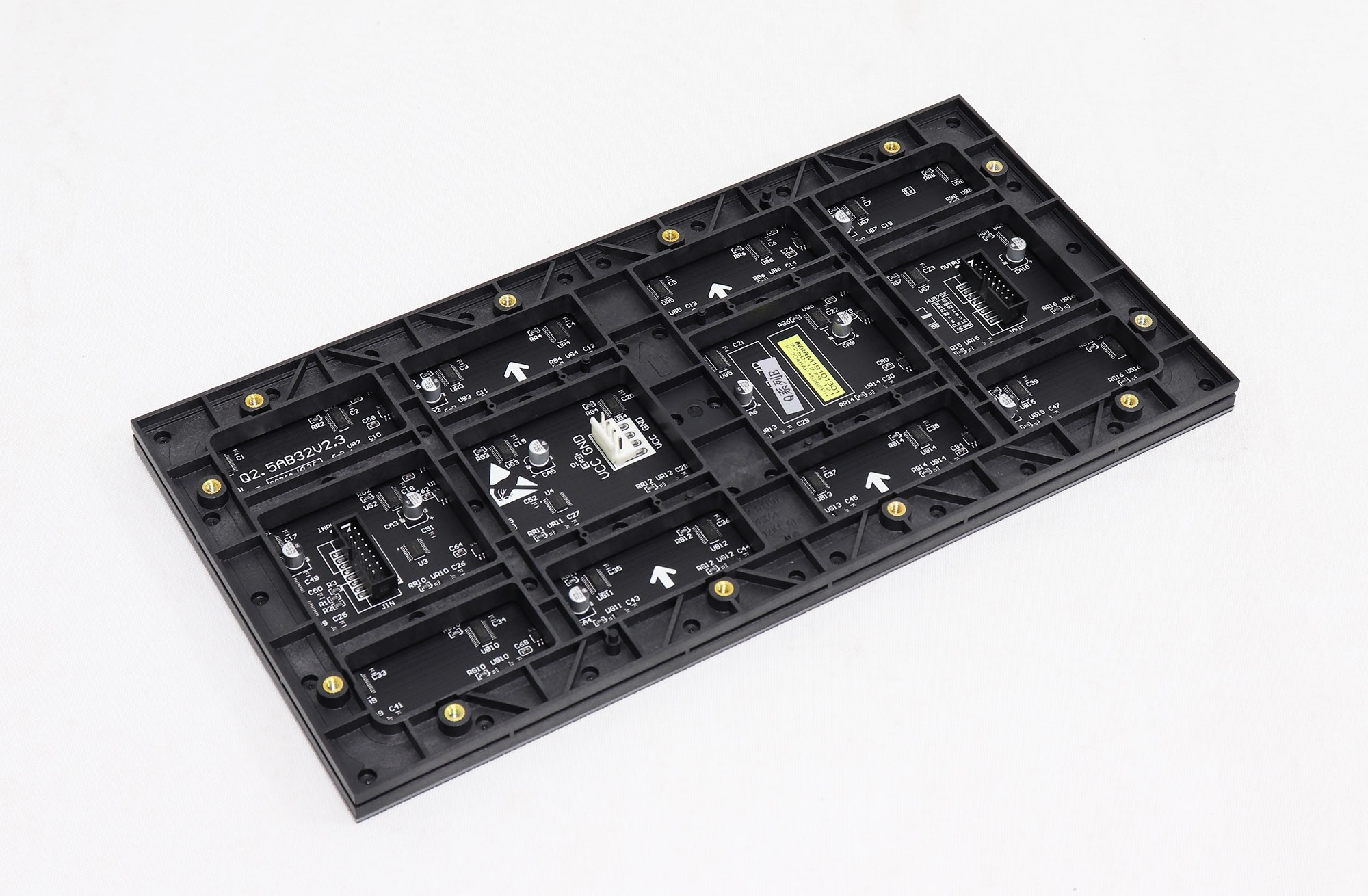

• Bottom case texture design
• High-quality lamp beads
• Lamp beads do not fall off easily.
• New design of PCB board is more reliable
• Lightweight installation
Module as a unit for assembling, reduced screen weight, reduce
the structural load of the building.
• Excellent visual experience
• Good Compatibility
Replace the indoor P1.2~P4 module with the same
series.
• Support for coating process*
• Supports 45° tangent angle*
• Support 7680Hz refresh*
AED 95.00
SPECIFICATION PARAMETERS：
Pixel Pitch 2.5mm
LED Type SMD2121
Module Resolution（W×H） 128X64=8192 Pixels
Pixel density（pixels/sq.m.） 160000 dot/㎡
Module Size (WxHXD) W320mmxH160mmxD16.6mm
Module Weight 0.38±0.02kg
HUB HUB75
Optical
Single-dot Brightness Calibration Support
Brightness 450~500 cd/㎡
Color Temperature 2000K～9300K Adjustable
Beam Angle（Hor/Ver°） 140°/140°
Brightness/Color Uniformity ≥98%
Contrast Ratio 5000:1
Electronic
Input Power <Max> 488 W/㎡
Input Power <Typical> 163 W/㎡
Power Supply Input Voltage AC90～132V/ AC186～264V, Frequency 47-63（Hz）
Performance
Frame Changing Frequency 60Hz
Refresh Rate
3840Hz（Standard）
7680Hz（Optional）
Processing Depth 12~14Bit
Video Support 2K HD, 4K UHD
Environment
Life Span（hrs） 100000hrs
Working Temp/Humidity（℃/RH） -20℃~45℃ / 10%~50%RH (No Condensation)
Storage Temp/Humidity（℃/RH） -20℃~50℃ / 10%~60%RH (No Condensation)
Certification BIS/CE/CB/ROHS/EAC
